BM PS M18 Mushroom-Shaped Interlocking Paving Stone Mould
Block Mould manufactures the BM PS M18 for industrial concrete block machines. The finished paving stone measures 206 mm in width and 212 mm in length. Steel and wear-resistant material options are selected according to customer preferences and production requirements. Product heights of 60 and 80 mm are available, while 100 and 110 mm configurations are prepared on request following a review of machine suitability.
Rounded Profile and Narrow End Geometry

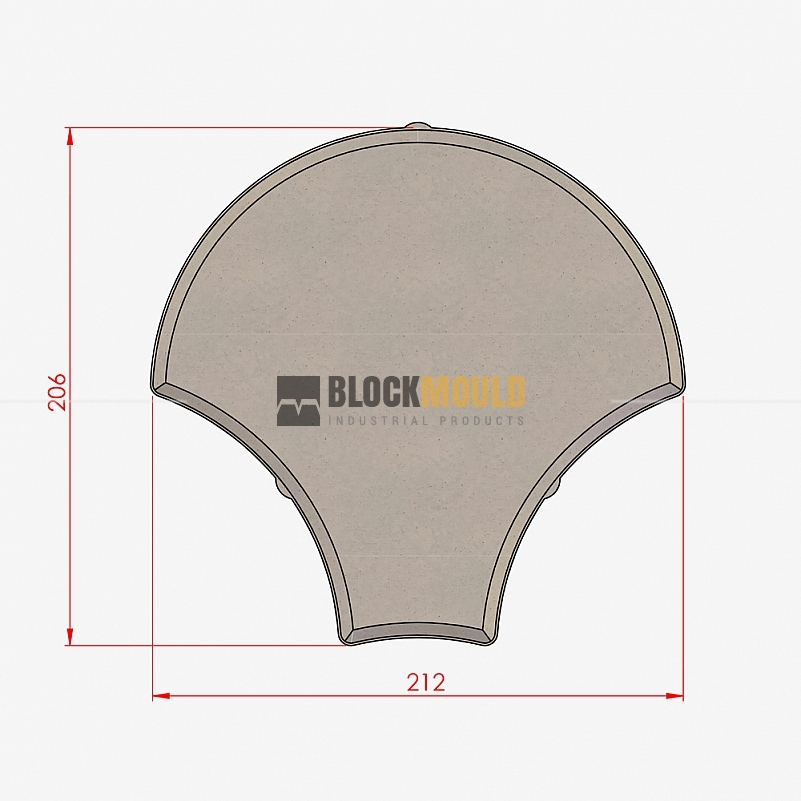

The outline combines a broad convex section with two concave sides that taper towards a narrow end. A short curve completes the narrow end. The perimeter chamfer and side spacers are defined in the product drawing.
The broad section's curvature, concave side radii and narrow end width are evaluated together during mould design. These dimensions are considered when checking the fit between adjacent stones and the intended joint spacing. Mould cavities and tamper shoes follow the approved profile and surface details.
Machine-Specific Mould Layout
The wide and narrow sections are considered together when determining cavity orientation and spacing across the production board. Output per cycle depends on board dimensions, available machine working space and the selected paving stone height.
The mould box, tamper assembly and mounting details are configured for the specific machine. Concrete filling into the narrow end, compaction and working clearances for vertical product release are considered during design.
Technical Approval and Quotation
Before manufacturing, a technical drawing showing the paving stone dimensions, curved profile, height and mould layout is submitted for customer approval. Material selection and final mould specifications are confirmed during quotation.
For a quotation, send your machine brand and exact model, production board dimensions, required paving stone height, output per cycle and dimensioned product drawing. Include photographs of your existing mould and machine.
Contact us to discuss your project and request a quotation.
