BM PS M16 Tulip Interlocking Paving Stone Mould
Block Mould manufactures the BM PS M16 for industrial concrete block machines. The finished paving stone measures 210 mm in width and 219 mm in length. Steel and wear-resistant material options are selected according to customer preferences and production requirements. Product heights of 60 and 80 mm are available, while 100 and 110 mm configurations are prepared on request following a review of machine suitability.

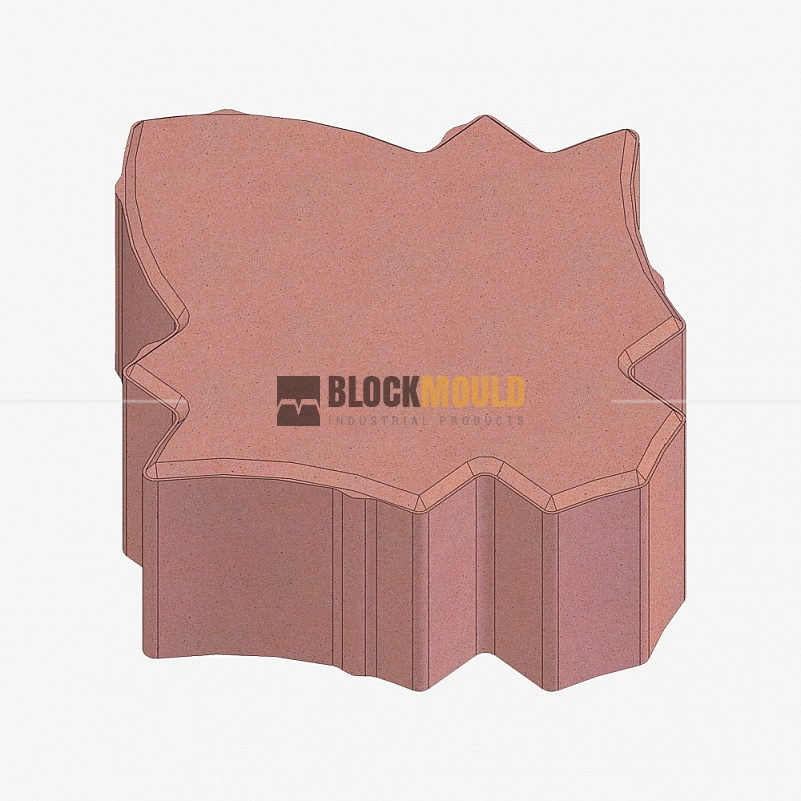

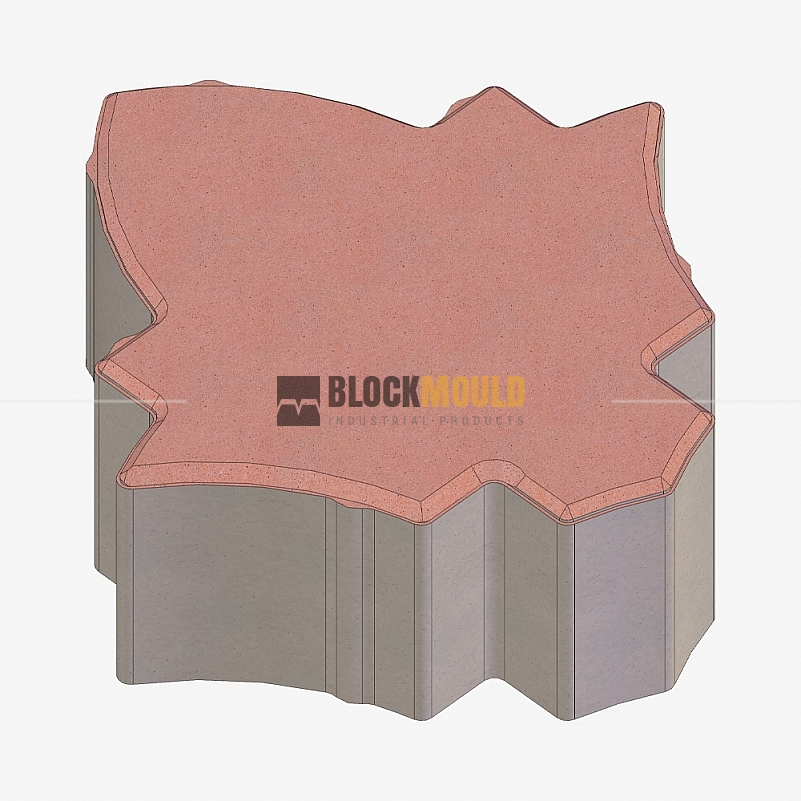

Tulip Profile and Edge Details

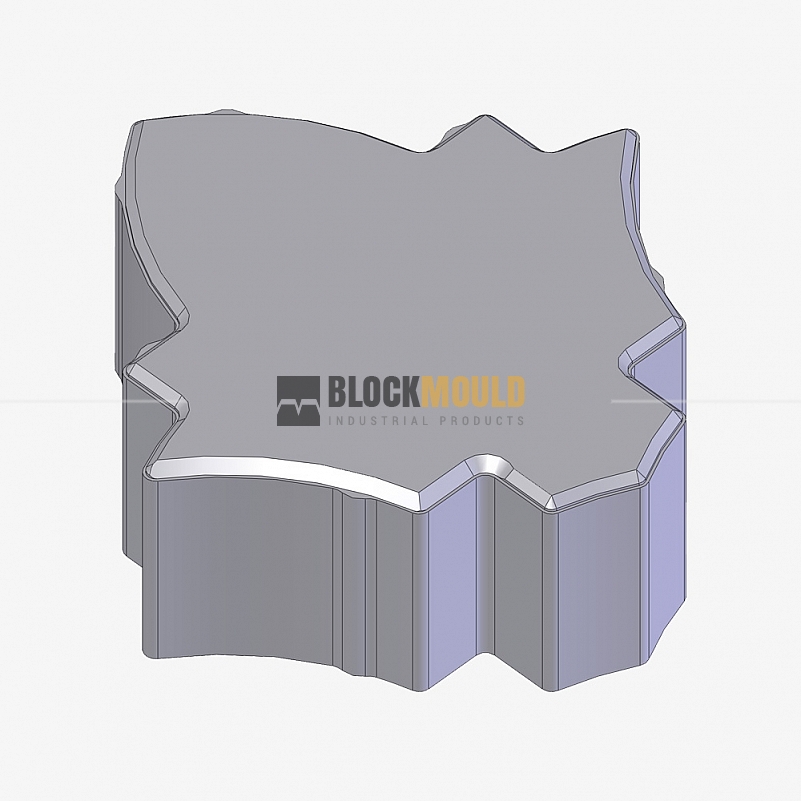

The outline combines broad curved sections with angular projections and recesses. A chamfer around the upper surface follows these transitions and defines the stone's profile.

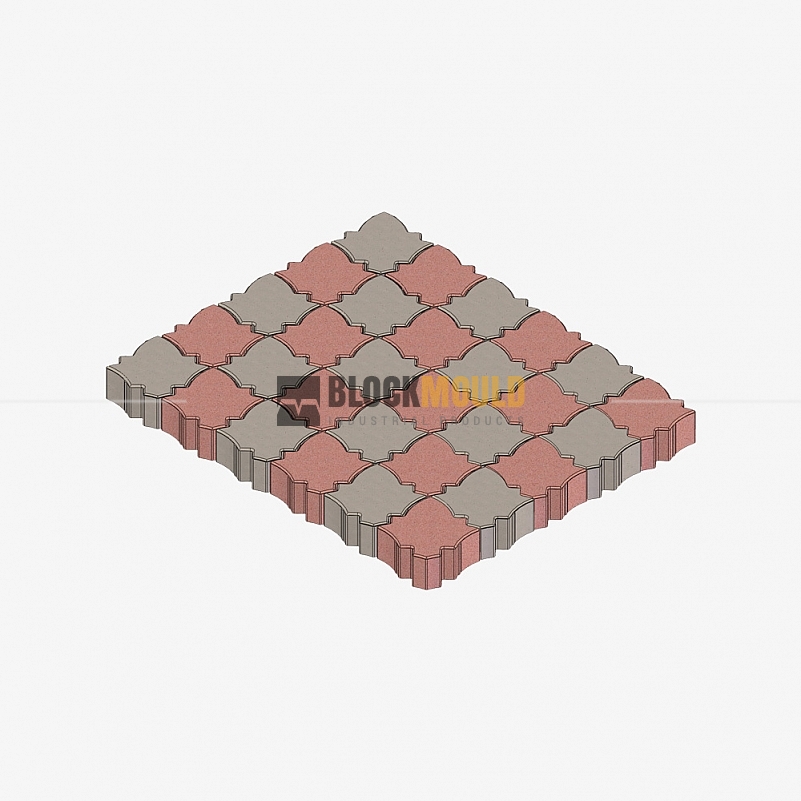

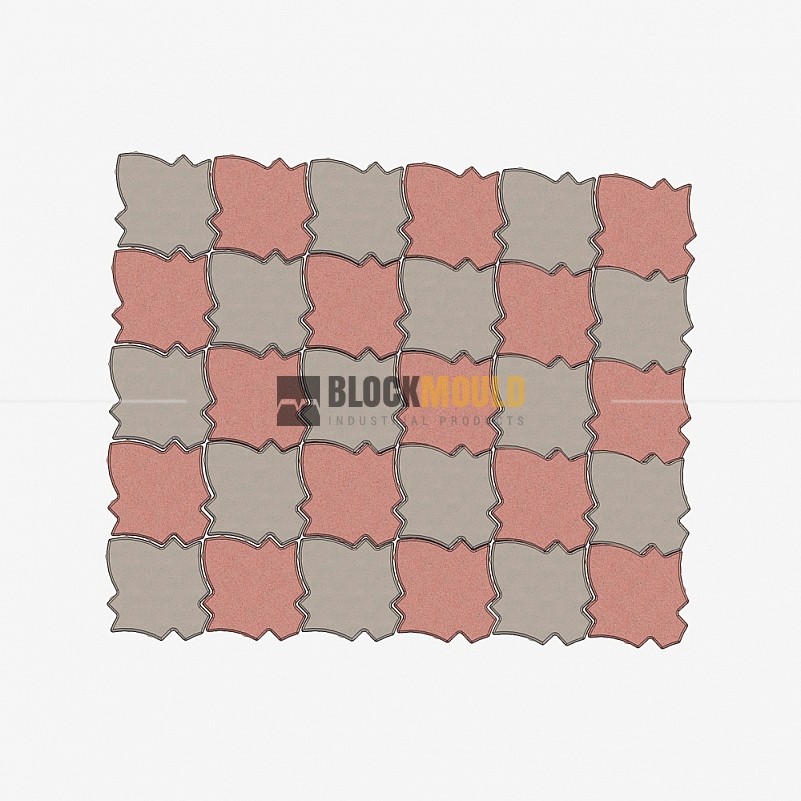

The mould drawing specifies projection positions, recess depths, curve radii and narrow transition widths alongside the overall dimensions. Edge fit and joint spacing between adjacent stones are evaluated for the intended laying arrangement. Tamper shoes are prepared to match the approved upper surface and chamfer geometry.
Machine-Specific Mould Layout

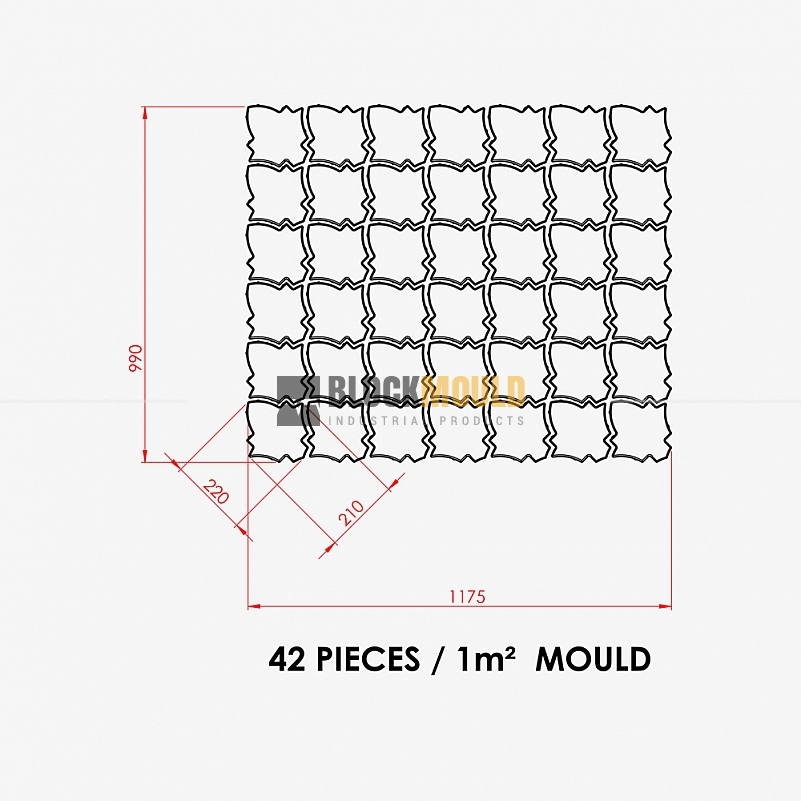

The projections extending in different directions are considered when determining cavity orientation and spacing across the production board. Output per cycle depends on board dimensions, available machine working space and the selected paving stone height.
The mould box, tamper assembly and mounting details are configured for the specific machine. Concrete filling into narrow and angular sections, compaction and working clearances for vertical product release are considered during design.
Technical Approval and Quotation
Before manufacturing, a technical drawing showing the paving stone dimensions, profile details, height and mould layout is submitted for customer approval. Material selection and final mould specifications are confirmed during quotation.
For a quotation, send your machine brand and exact model, production board dimensions, required paving stone height, output per cycle and dimensioned product drawing. Include photographs of your existing mould and machine.
Contact us to discuss your project and request a quotation.
