BM PS M1
Technical Specification
Width (mm)
163
Lenght (mm)
198
Height (cm)
6-8
Weight (kg)
5
Pieces / m²
36

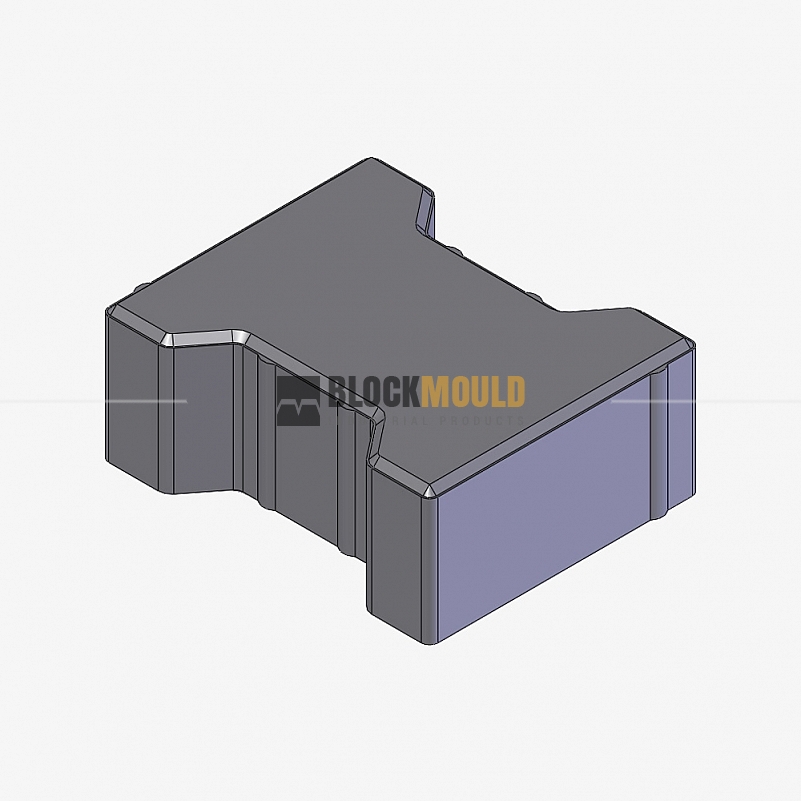

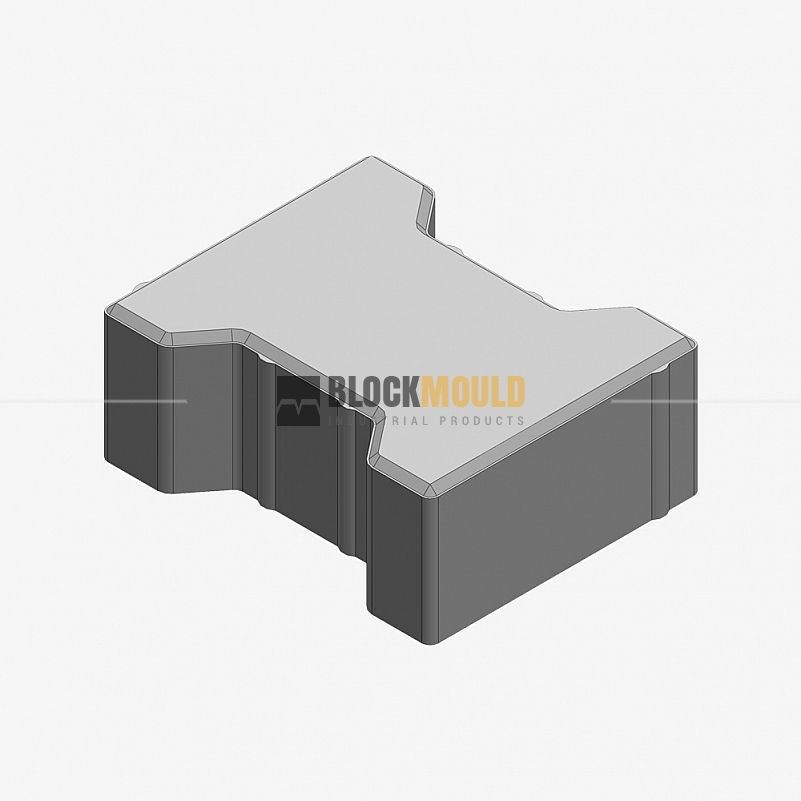

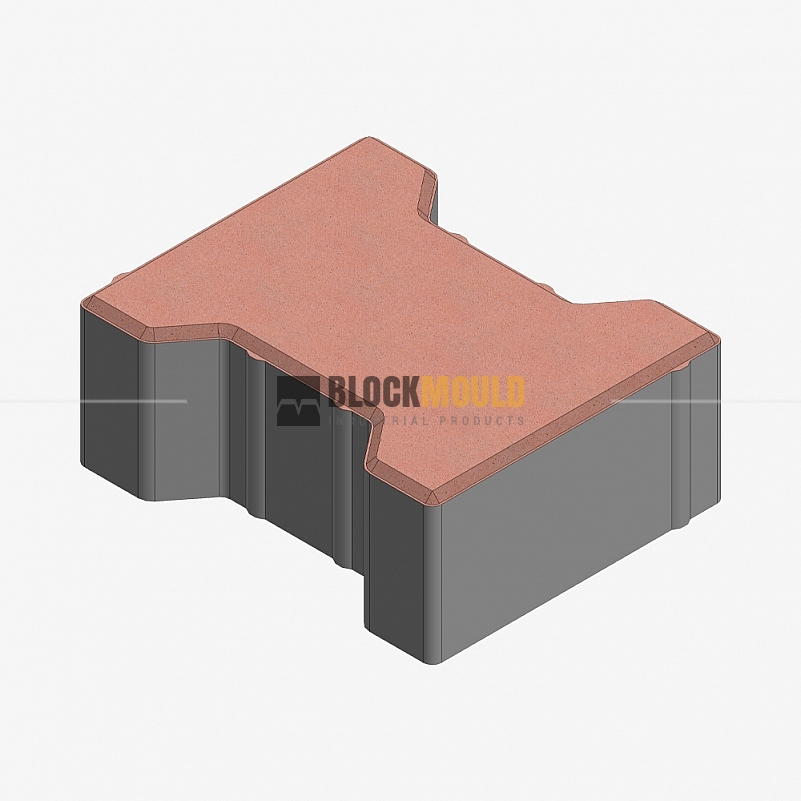

Paving stone mold is the most used concrete block model. It is called in H type concrete block. It was also called interlocking cobblestone.

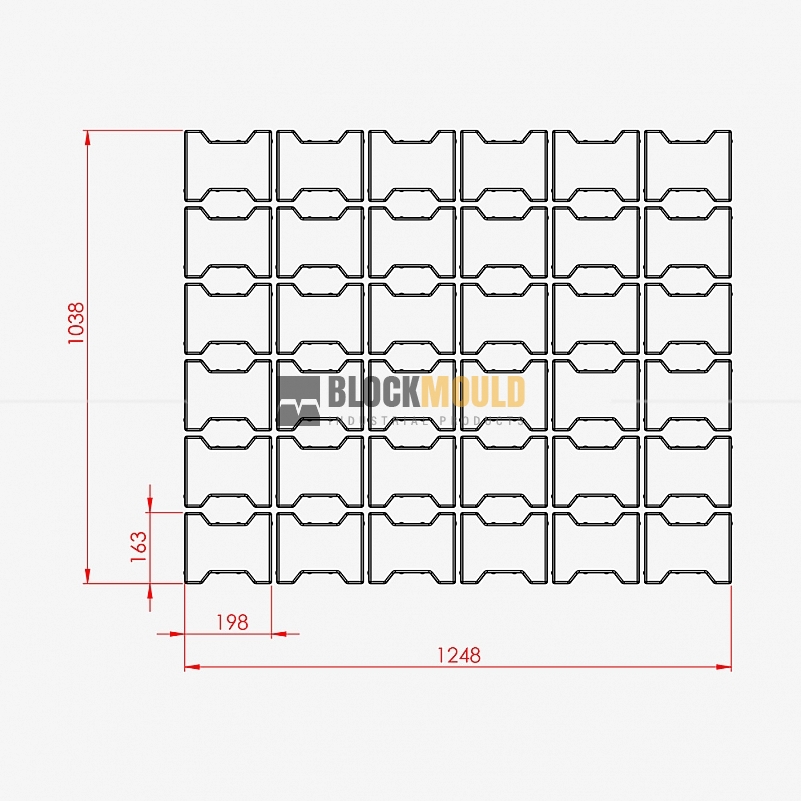

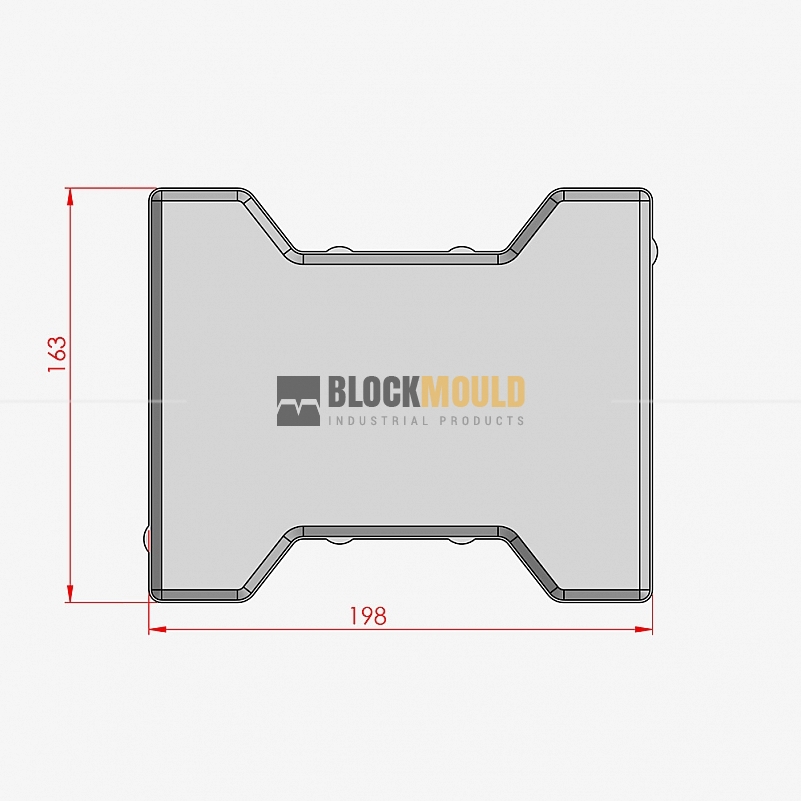

Its outer dimensions are 163x198 mm. Its gross size is 16.5 cm x 20 cm. A 2 mm sand gap is added.
Thickness varies according to usage areas.
* 4-6 cm thickness is used for pedestrian walkways.

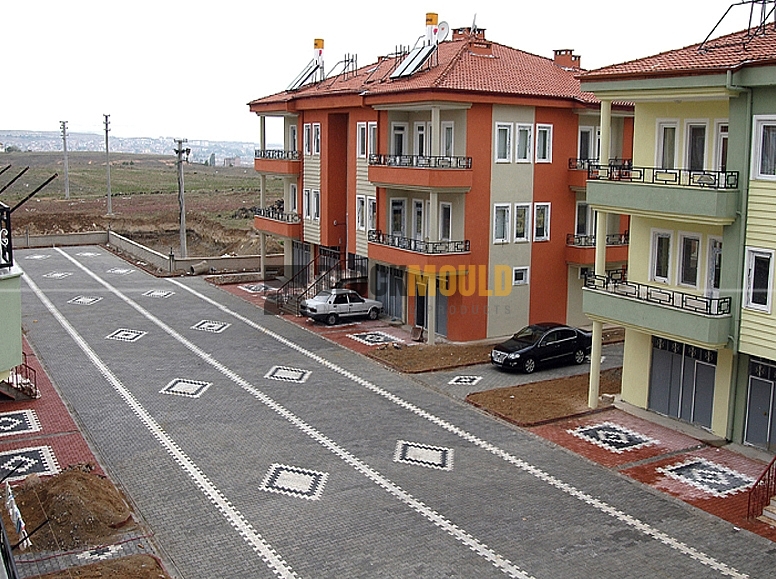

* 7-8 cm thick ones are used in urban roads.
* A thickness of 10-12 cm is used on the roads of vehicles carrying heavy loads. For example, industrial sites or ports.

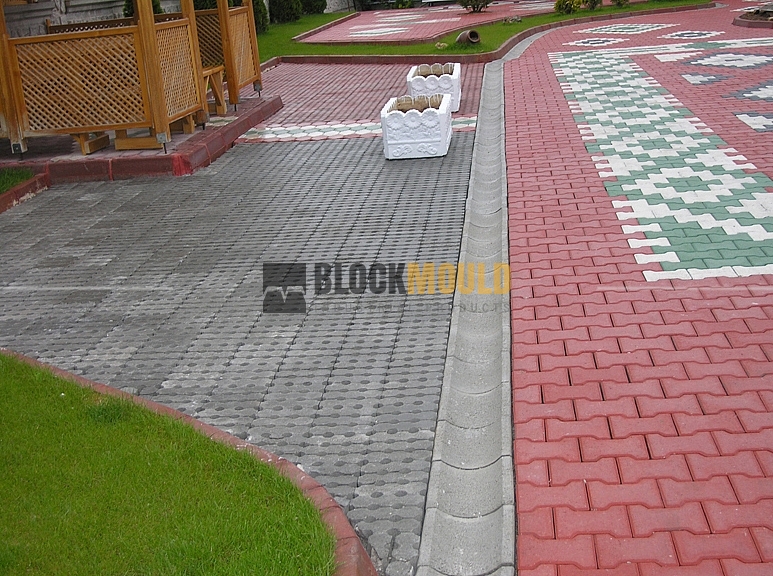

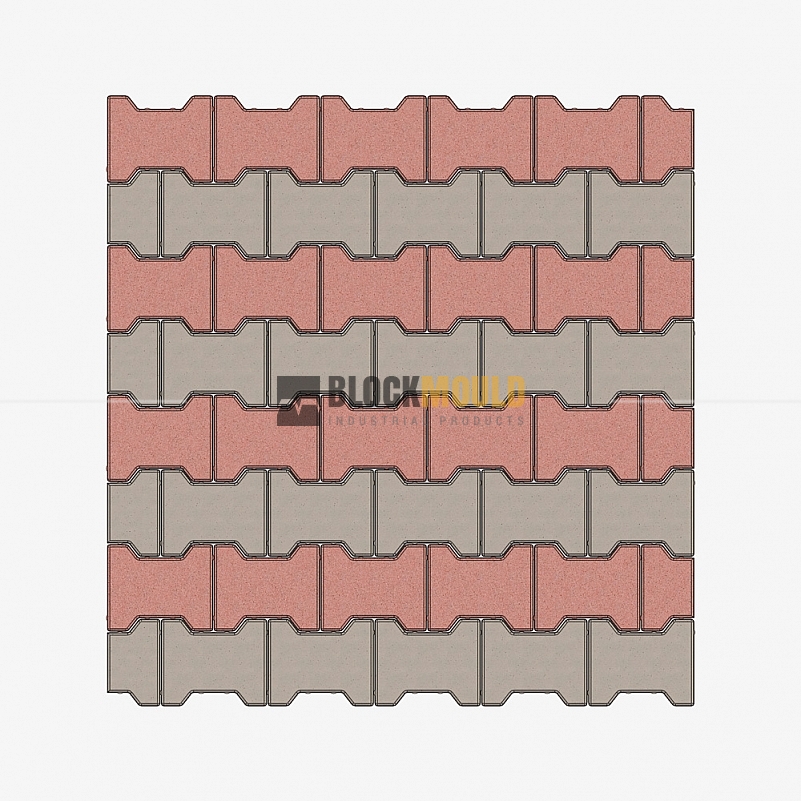

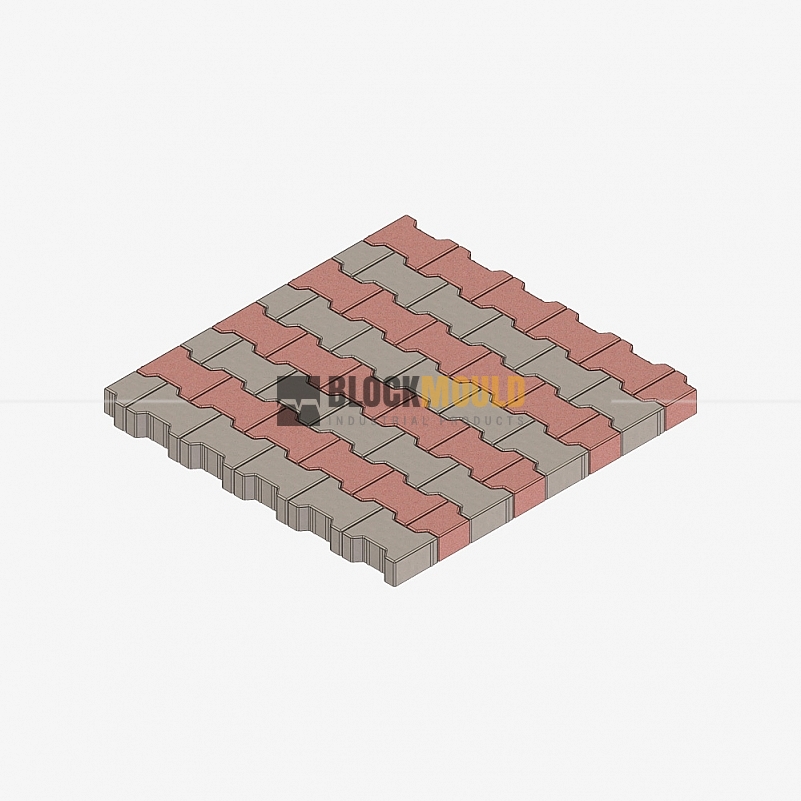

This type of concrete paving stone is easier to lay on the ground. Therefore, it is preferred. These stones lock together and the ground remains stronger. The edges of the stones have geometry that grasps each other. It gives very little waste. It can be shaped by cutting or breaking.
