Block Mould manufactures custom curved interlocking paving stone moulds for different brands and models of concrete block machines.

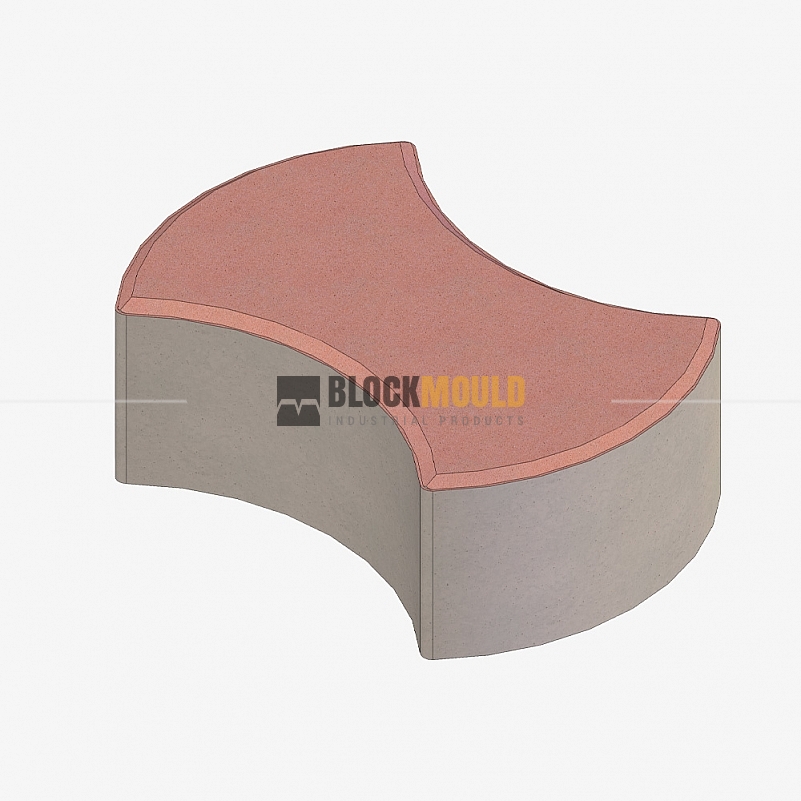

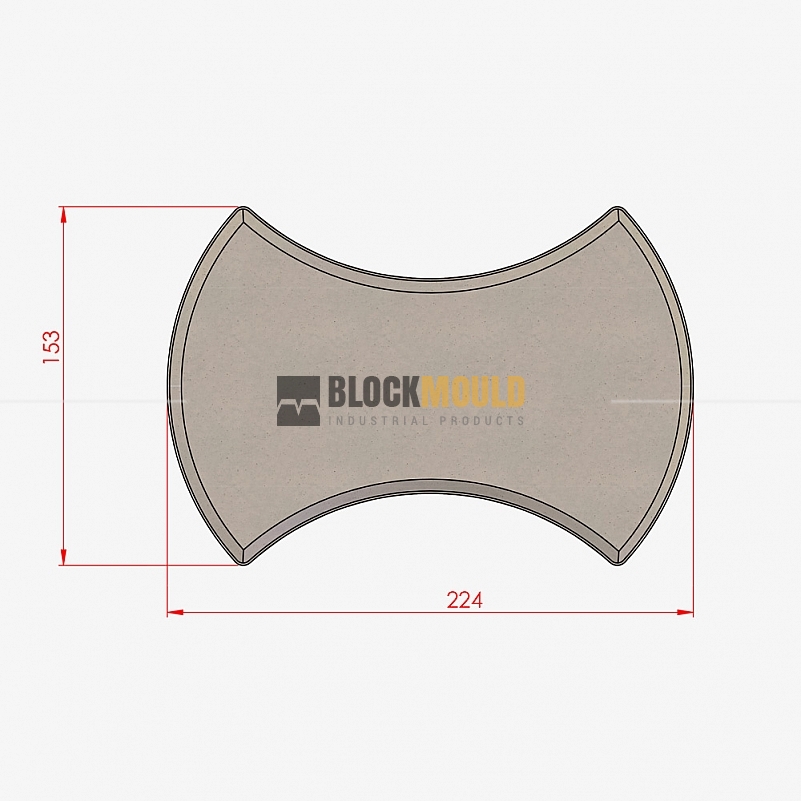

The curved paving stone has finished dimensions of 153 × 224 mm and is generally produced in 60 mm or 80 mm heights. Different product heights may also be evaluated according to the intended application, machine capacity and project requirements.

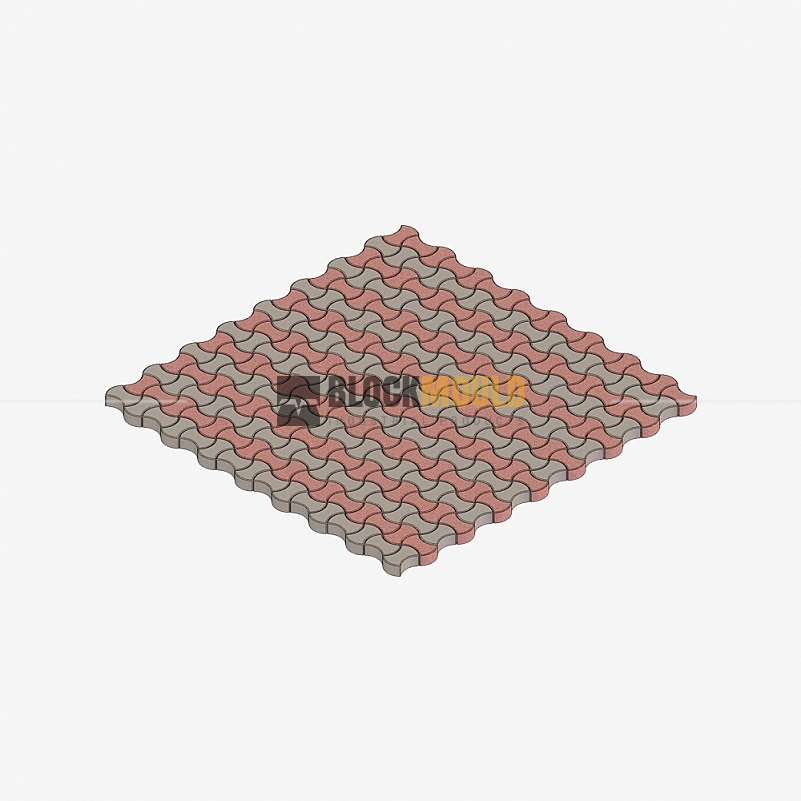

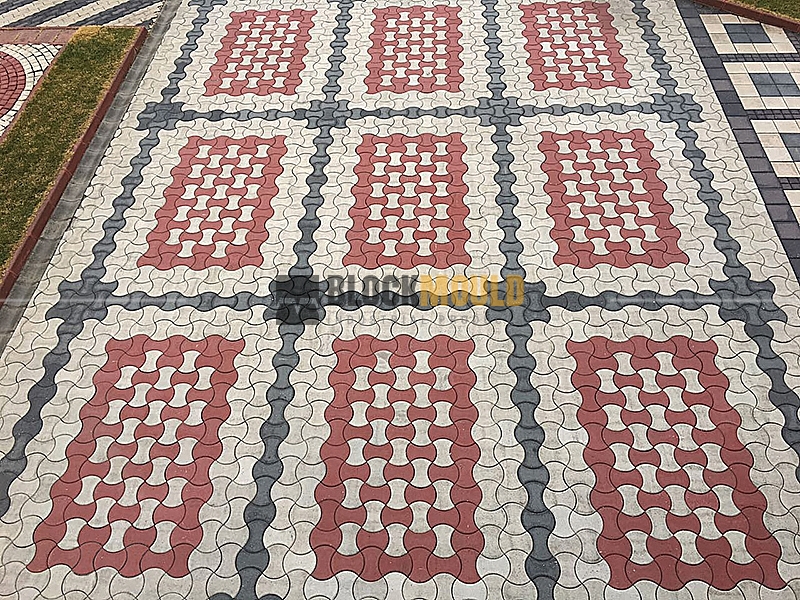

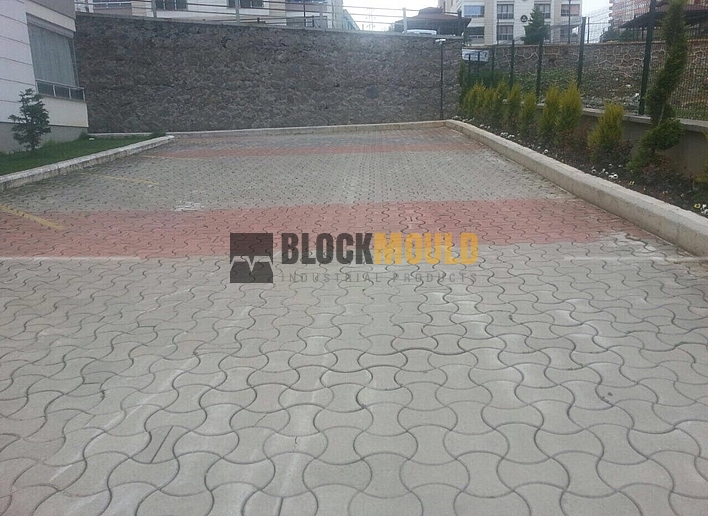

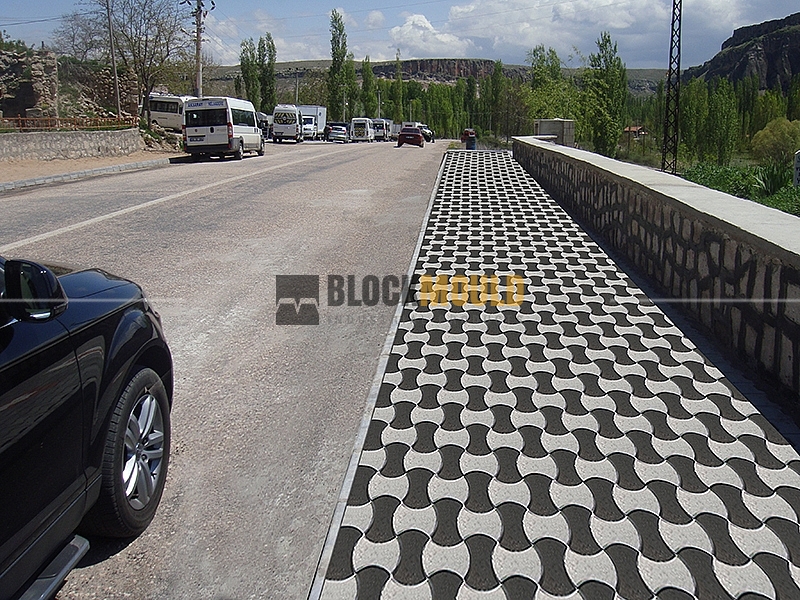

Its opposing curved edges create a distinctive interlocking geometry that helps adjacent paving stones connect securely and supports stable surface installation. The shape allows decorative and repeating laying patterns to be created in pedestrian areas, landscaping projects, public spaces, courtyards, walkways, parking areas and vehicle traffic zones.
The 60 mm version is generally preferred for pedestrian and landscaping applications. The 80 mm version may be used in areas exposed to vehicle traffic, subject to pavement design, ground preparation and local technical requirements.
Each mould is designed according to the customer’s:
- * Machine brand and exact model
- * Production board dimensions
- * Required paving stone height
- * Number of mould cavities
- * Product geometry and joint requirements
- * Selected laying pattern
- * Concrete filling and production conditions

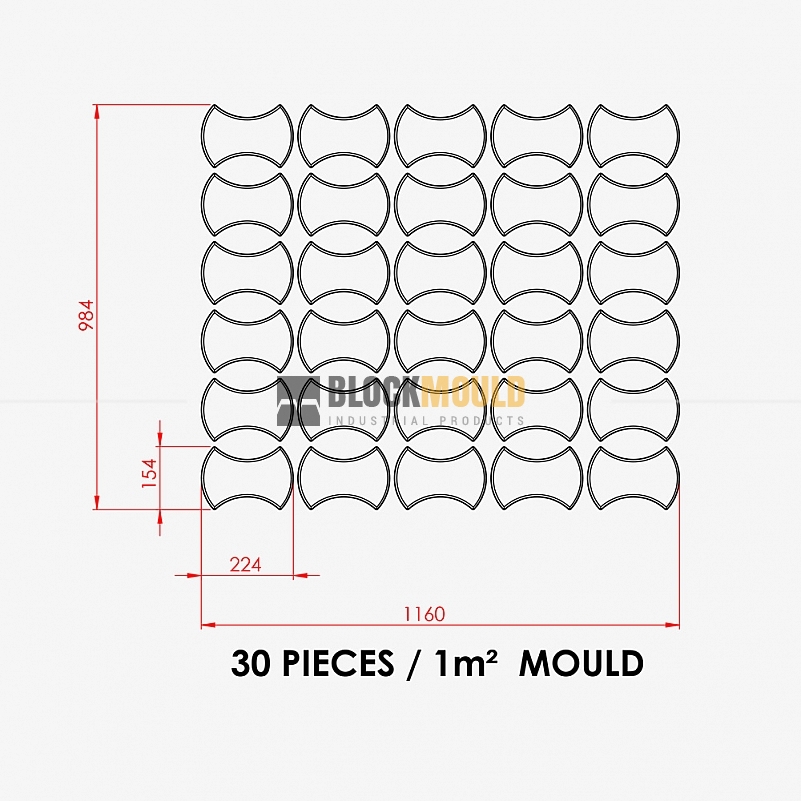

Before manufacturing, we prepare a dimensioned technical drawing showing the product dimensions and mould cavity arrangement. Production begins after the drawing and technical specifications are checked and approved by the customer.
Approximately 30 paving stones are required per square metre. Product weight and actual surface coverage may vary according to product height, concrete density, joint spacing and production conditions.
Send us your machine details and production board dimensions for a custom curved interlocking paving stone mould quotation.
